Blue Water Series Opening Ports
Blue Water Series Opening Ports
Our Blue Water Series ports are built with the integrity required for offshore cruising. Adjustment screws in the hinge boss provide for glass-tension adjustment. Extra-thick tempered glass will take an aggressive wave slap.
Solid cast bronze construction mated with the best in glass and neoprene gaskets add up to a rugged high-performing port you can count on. Stainless steel hinge pins hold the port pieces together and full cast-bronze knobs provide proper dog-down and safety from sharp edges. Full spigot drainage.
Screens are included.
7" x 14" Rectangular Port P585
Opening = 13.625" x 6.625"
Cut-out = 14.5" x 7.625"
Fastener = 1/4"
Glass thickness = 3/8"
Spigot length = 1.75"
Weight = 19.5 lb.

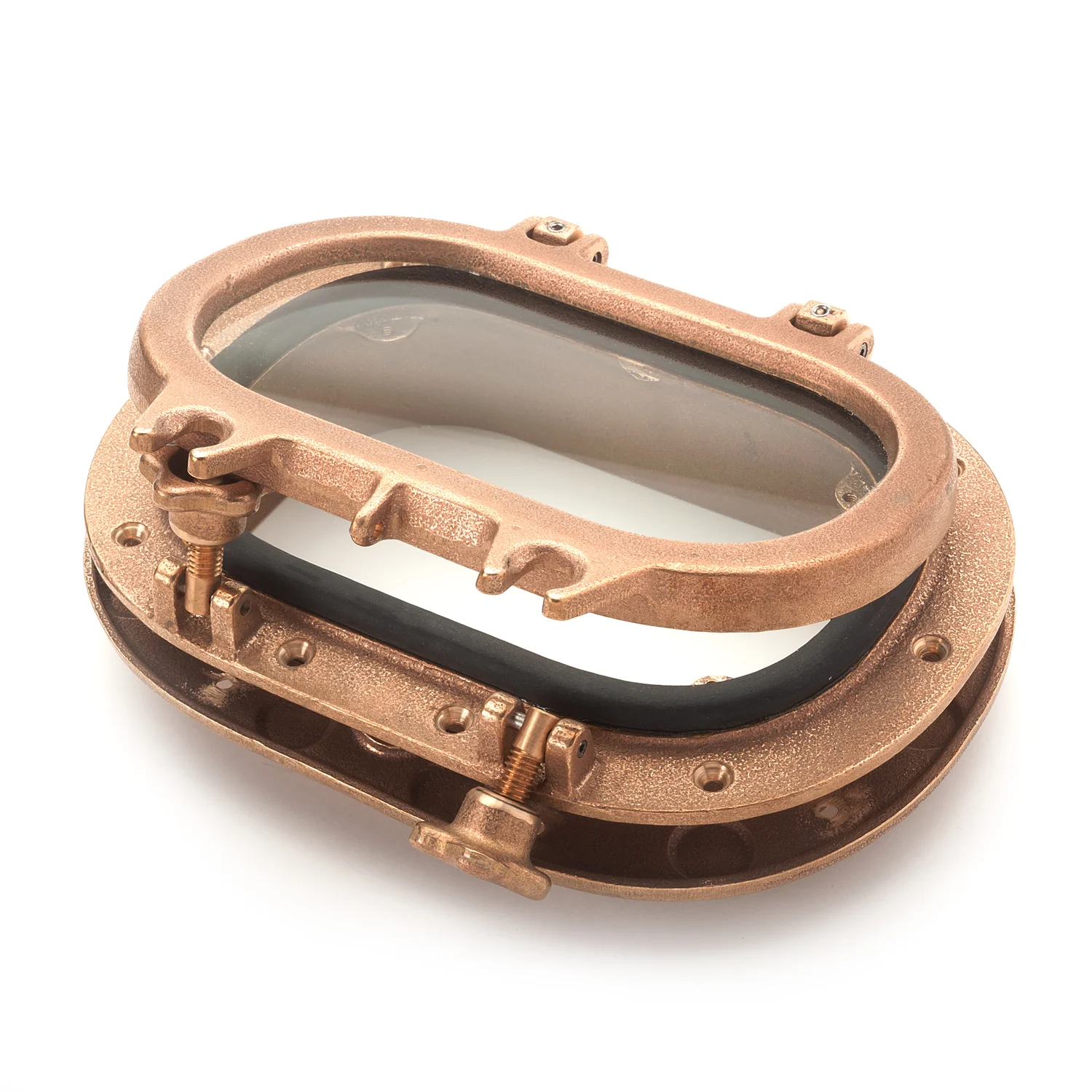

6" x 9" Oval Port P586
Opening = 9.125" x 5.25"
Cut-out = 9.875" x 6.25"
Fastener = #10
Glass thickness = 5/16"
Spigot length = 1.75"
Weight = 11.25 lb.
5" x 8" Oval Port P587
Opening = 7.50" x 4.375"
Cut-out = 8.375" x 5.375"
Fastener = #10
Glass thickness = 5/16"
Spigot length = 1.75"
Weight = 10.50 lb.
